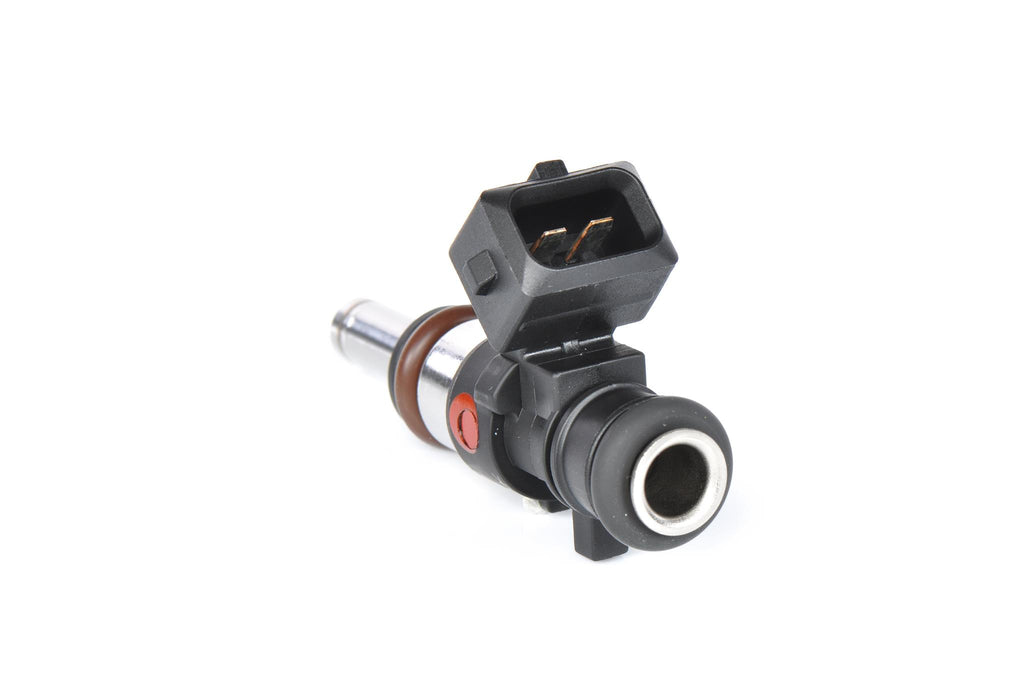

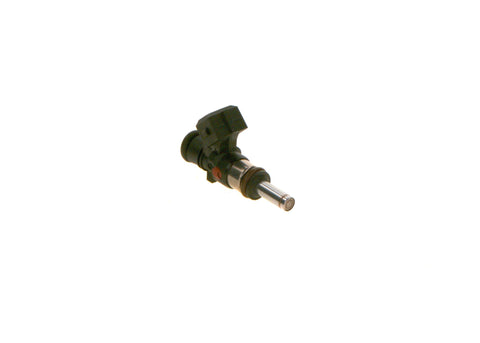

Bosch 2200 cc/min ( 210 lb/hr ) 9 ohm High Impedance Injectors with Denso EV14 connector
Coil Resistance: 9.1 Ohms
Dead Time: 0.45ms at 14 volts
Static Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 2200 cc/min = 210 lb/hr
Static Flow Rate @ 58 PSI ( 400kPa ) w/Gas: 2550 cc/min = 240 lb/hr
Static Flow Rate @ 78.5 PSI ( 500kPa ) w/Gas: 2865 cc/min = 273 lb/hr
Static Flow Rate @ 88 PSI ( 600kPa ) w/Gas: 3155 cc/min = 300 lb/hr
Static Flow Rate @ 101.5PSI ( 700kPa ) w/Gas: 3350 cc/min = 320 lb/hr
Connector: Denso / Sumitomo

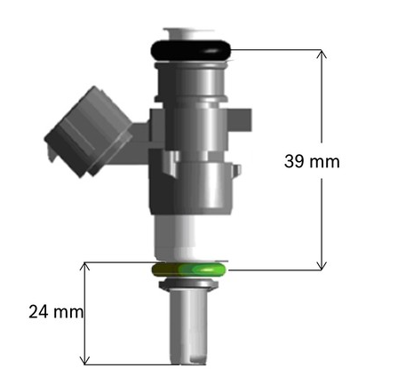

Injector Length: O-Ring to O-Ring: 1.5. / 37.5 mm
Injector Body Diameter: 16mm
O-Ring: 14.5mm Viton
